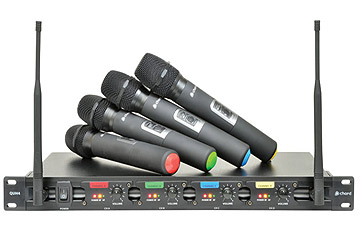

Chord Quad UHF Wireless Microphone System

Add to basket
  • Description
  • More details


When running 4 microphones the UHF Frequency is essential

  • Individual or mixed outputs
    Twin front-mounting antenna
    Supplied with 4 colour coded transmitters
    19" rack-mountable (1U)
    Dimensions - handheld transmitter 243 x 48mmØ
    Weight - handheld transmitter 238g (no battery)
    Power supply 12 - 18Vdc 800mA adaptor (supplied)
    Batteries 8 x AA (included)
    Carrier frequency 863.42, 864.99, 864.30 and 863.01MHz
    Stability 10PPM
    S/N ratio >105dB
    THD <0.5% @ 1KHz
    Image rejection 85dB typical
    Range 60m (max)
    Output impedance 2.2k ohms
    Output level Balanced: 0-400mv, unbalanced: 0-200mv
    Connectors DC in, 4 x XLRM, 6.3mm jack
    Dimensions - receiver 483 x 44 x 225mm



Replaceable modules for each frequency means no down time

Individual balanced audio output for crystal clear sound
